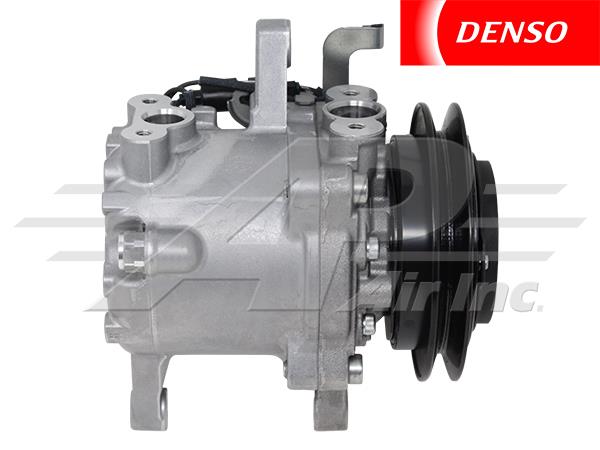

Kubota 3C581-97590 Denso SVO7E A/C Compressor – M5040 to M9540

Your Kubota M-Series tractor’s A/C isn’t cooling — or the compressor clutch isn’t engaging. This is the direct-fit Denso SVO7E A/C compressor for Kubota M5040 through M9540 tractors, matching OEM specifications for a drop-in replacement.

OEM References: 3C581-97590, 3C581-50060

Fits:

• Kubota M5040, M5040C, M5040DT, M5040DTC, M5040HDC
• Kubota M5140DTC, M5140HDC, M5140FC
• Kubota M6040HDSDT, M6040HDSDTC
• Kubota M7040, M7040DT, M7040DTC, M7040FC, M7040HDNBC
• Kubota M8540, M8540DT, M8540DTC, M8540FC, M8540HD, M8540HDNB, M8540HDNBC, M8540HDNBPC, M8540F
• Kubota M9540, M9540DT, M9540DTC, M9540FC
• Kubota M96S, M100X DTC, M108S

⚠️ Condenser replacement recommended: On applications with a parallel flow style condenser, condenser replacement is strongly recommended when replacing the compressor. Metal debris from a failed compressor can contaminate the condenser. See our Kubota condenser listings for the correct match.

Specifications:

• Compressor Type: Denso SVO7E
• Oil Type: ND-Oil 8
• Clutch Diameter: 111mm (4.38")
• Voltage: 12V
• Grooves: 1
• Belt Width: 7/16" (.437")
• Coil Position: 10 o’clock
• Gauge Line: 59mm (2.32") — Top Ear to Center of Groove
• Lower Ear Outside Dimensions: 3.547"
• Lower Ear Inside Dimensions: 2.404"

Direct fit. Fast shipping from Ram Parts USA.
