KRYPTONITE ULTIMATE FRONT END PACKAGE-GM HD 2011-2025 (factory size outer rod end)

KRYPTONITE ULTIMATE FRONT END PACKAGE 2011-2025

Part# ULTIMATE11

Fits; 2011-2025 CHEVY/GMC 2500/3500 HD

***RTS Kits are intended for trucks fitted with lift knuckles that use oversized outer studs.***

*Make sure to select the correct fitment for your truck!

CLICK HERE FOR CENTER LINK INSTALLATION INSTRUCTION DOWNLOAD

If you're looking for the best for your truck, look no further. The Ultimate Front End Kit includes every moving component of your steering. This kit is hands down the strongest option for any GM Heavy Duty Truck. Fully capable of handling high horsepower boosted launches, while also maintaining comfortable street drivability. Each piece of this system is part of the Kryptonite Death Grip parts group, the absolute strongest parts available.

Note: If installing Kryptonite SS Series centerlink on a leveled or lifted truck you may need to install longer sway bar end links depending on how high the torsion bars have been adjusted.  We recommend the Kryptonite HD sway bar end links. This kit will only work on trucks that keep the center link in the factory position. If your truck has been lifted make sure the lift kit you have is a spindle style kit not a control arm drop. This steering system is modeled after the Center Link on the H1 Military Hummer, this is a much stronger design when compared to what's offered from factory on all non Hummer GM HD Trucks.

The Idler arm in this kit will not function properly with older style "Drop Centerlink" Lift kits. Or "Drop Control Arm" Lifts kits. For example; older Pro Comp and early 2000's Fabtech Kits. For any questions on this please CONTACT US

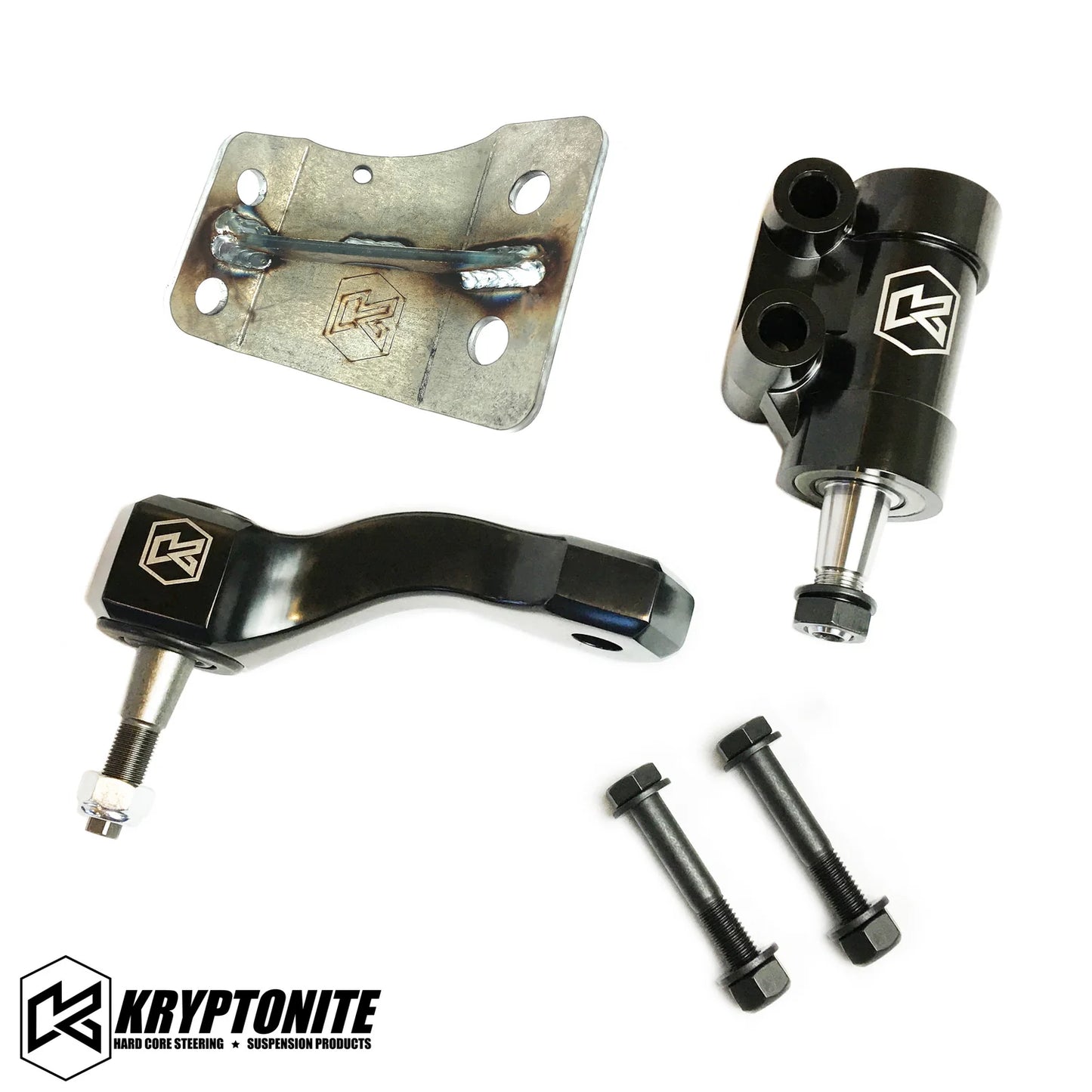

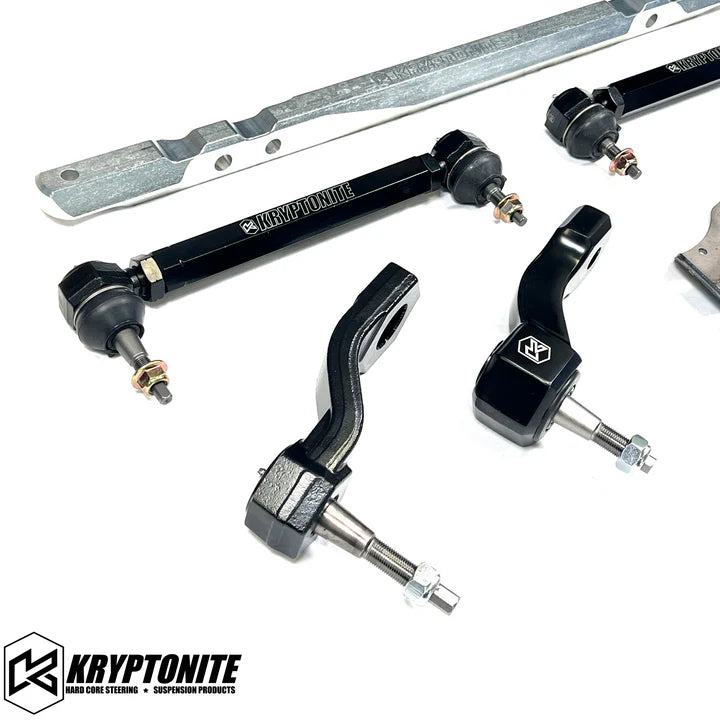

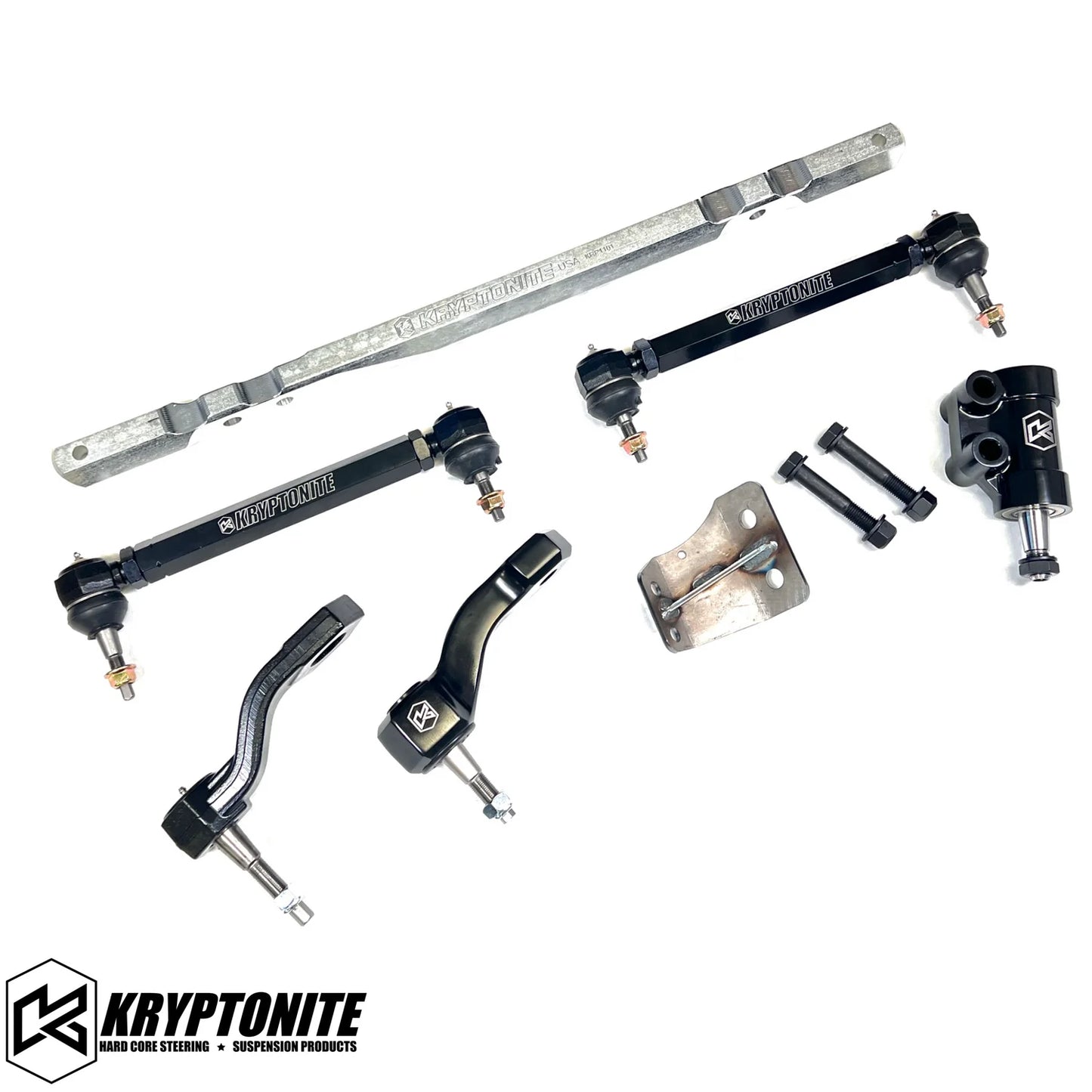

Kit Includes:

• Kryptonite SS Center Link and Tie Rod Package

• Kryptonite Idler Support

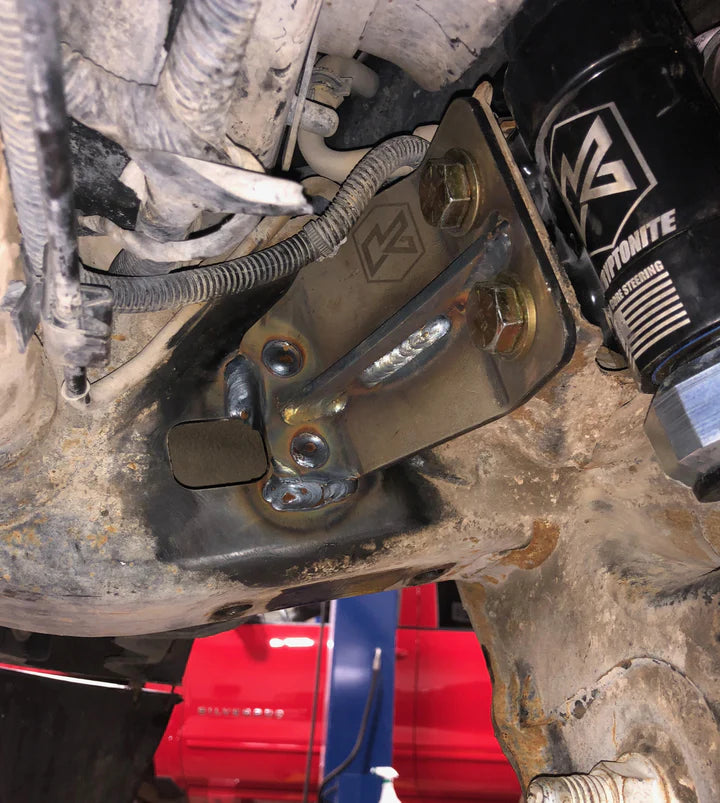

• Kryptonite Idler Support Frame Gusset

• Kryptonite Death Grip Pitman Arm

• Kryptonite Death Grip Idler Arm

(Kryptonite No Fine Print Lifetime warranty)-Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off road it, wreck it, lift it, I think you get it? We don't care. If you can break it we will replace it.

Your Kryptonite products must be purchased from an authorized dealer, and must complete warranty registration within 90 days of purchase. Complete Warranty details can be found here.
